DBL-F02 30FT PE Film Container Liner
30FT PE Film Container Liner is a professional flexible packaging product specially designed for the bulk transportation of plastic pellets in European markets, tailored to fit 30FT standard containers.
COLOR
Customization Available
SIZE
Customization Available
Specification & Application (For European Plastic Pellet Transportation)
Product Overview
30FT PE Film Container Liner is a professional flexible packaging product specially designed for the bulk transportation of plastic pellets in European markets, tailored to fit 30FT standard containers. Adopting high-quality LDPE (Low-Density Polyethylene) film as the core material, it is engineered to meet the strict transportation requirements of European plastic pellet industry—featuring excellent moisture-proof, dust-proof, wear-resistant and anti-adhesive performance. The liner is equipped with 4 top filling spouts, which are perfectly compatible with European plastic pellet loading equipment, enabling efficient, fast and clean filling operations. Lightweight, foldable and easy to install, it effectively isolates external moisture, dust and pollutants, ensuring the cleanliness, integrity and quality stability of plastic pellets during long-distance land and sea transportation in Europe. It is widely recognized in European plastic processing and logistics industries, providing a cost-effective, safe and reliable packaging solution for bulk container transportation of various plastic pellets (such as PP, PE, ABS pellets).
Product Specifications
| Parameter | Detailed Specification |
| Product Name | 30FT PE Film Container Liner (For Plastic Pellet) |
| Material | High-quality LDPE (Low-Density Polyethylene) film; thickness customizable (120-160micron, recommended 140micron for European plastic pellet transportation); food-grade available (optional); non-toxic, odorless, tasteless, compliant with EU REACH, RoHS and food contact safety standards (if applicable). |
| Material Thickness & Weight | LDPE film thickness: 120-160micron (customizable, 140micron as standard); Total thickness: consistent with LDPE film thickness; Unit weight: 20-35kg (matched with 30FT container size, ensuring load-bearing capacity and cost-effectiveness). |
| Tensile Strength | Warp: ≥ 1500N/5cm; Weft: ≥ 1300N/5cm; resistant to pressure of bulk plastic pellets and transportation vibration (especially suitable for European intermodal transportation), not easy to tear or break. |
| Elongation at Break | Warp: ≤ 30%; Weft: ≤ 35%; excellent flexibility, can fit closely with 30FT container inner wall, adapting to loading/unloading operations and transportation bumps without damage. |
| Moisture & Dust Proof | 100% moisture-proof and dust-proof; LDPE film has superior barrier performance, effectively isolating European humid air, rainwater and dust, preventing plastic pellets from dampening, caking, contamination or quality degradation. |
| Chemical Resistance | Resistant to common industrial chemicals, plastic pellet additives and food-grade oil; non-reactive with PP, PE, ABS and other plastic pellets, ensuring no pollution to the goods; not suitable for strong acid, strong alkali or highly corrosive substances. |
| Load Capacity | 20-30 tons per 30FT container (matched with European plastic pellet density, customizable according to specific pellet type and transportation requirements). |
| Available Sizes | Customized for 30FT standard containers (inner size: length 9.144m, width 2.438m, height 2.591m); fits container inner wall closely, no loose or wrinkled areas, ensuring full use of container space. |
| Color | Transparent, white (standard, most commonly used in European plastic pellet transportation); other colors (black, blue) customizable with minimum order quantity, meeting European customer brand needs. |

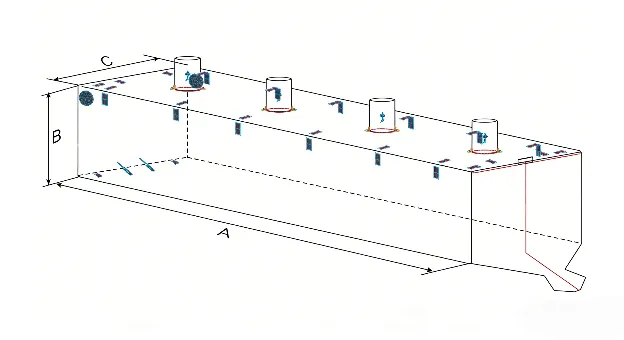

| Accessories (Core: 4 Top Filling Spouts) | 1. 4 Top Filling Spouts: Diameter 25-30cm (European standard size), made of thickened LDPE, heat-sealed firmly with the liner, equipped with sealed covers; evenly distributed on the top of the liner, compatible with European plastic pellet filling equipment for efficient filling. 2. Reinforced edges: Heat-sealed, thickened design, prevent tearing during loading/unloading. 3. Fixing ropes: 8-12 pcs, high-strength PE rope (European standard), load-bearing ≥ 3 tons each, fixed firmly to container corners. 4. Anti-slip bottom (optional): Increase friction, prevent liner displacement during transportation. 5. Discharge port (optional): Matching European unloading equipment, easy for quick and clean unloading. |
| Certifications | ISO9001, EU REACH, RoHS, FDA (food-grade optional); fully compliant with European packaging safety and environmental protection standards, suitable for European market sales and use. |
Product Features
- European Market-Oriented Design: Tailored for 30FT standard containers, perfectly matching European container specifications; 4 top filling spouts (European standard size) are specially designed for plastic pellet transportation, compatible with European filling equipment, realizing efficient, fast and clean loading, solving the pain point of slow filling in European plastic pellet logistics.
- Superior Barrier & Anti-Adhesive Performance: High-quality LDPE film ensures 100% moisture-proof and dust-proof effect, adapting to European humid climate; smooth surface prevents plastic pellets from adhering to the liner, avoiding product loss and facilitating quick unloading, which is in line with European plastic processing industry’s requirements for product cleanliness.
- High Durability & Safety: Excellent tensile strength and elongation, resistant to pressure of bulk plastic pellets and vibration during European intermodal transportation (land + sea), not easy to tear or break; non-toxic, odorless, compliant with EU environmental and safety standards, ensuring no pollution to plastic pellets.
- Lightweight & Easy to Use: Thin and lightweight, reducing additional transportation weight and cost (critical for European long-distance logistics); foldable when not in use, saving storage space in European warehouses; no professional tools required for installation, quick and efficient, reducing labor costs for European customers.
- Customizable & Versatile: LDPE thickness, color and accessories (such as discharge port) can be customized according to European customers’ specific needs (e.g., different plastic pellet types, loading/unloading equipment); suitable for various plastic pellets (PP, PE, ABS, etc.) commonly transported in Europe.
- Cost-Effective & EU-Compliant: Compared with other packaging materials, LDPE film has the advantages of low cost, stable performance and wide applicability; all certifications meet EU standards, no need for additional testing, directly applicable to European market sales and use.
Product Application (Focus on European Plastic Pellet Transportation)
Main Application Fields & Goods
- European Plastic Processing Industry: Specially used for the bulk transportation of various plastic pellets, including PP (Polypropylene) pellets, PE (Polyethylene) pellets, ABS (Acrylonitrile Butadiene Styrene) pellets, PVC (Polyvinyl Chloride) pellets and other common plastic raw materials, which are widely used in European plastic product manufacturing (such as auto parts, packaging materials, household goods, medical devices).
- European Plastic Raw Material Trade: Suitable for cross-border and domestic transportation of plastic pellets in Europe (e.g., transportation from Germany, France to Italy, Spain), ensuring the quality stability of plastic pellets during long-distance logistics, meeting the strict quality requirements of European plastic raw material traders.
- Other Related Fields: Also applicable to the transportation of other small granular non-sharp, non-corrosive goods in Europe (such as plastic additives, small resin particles), but mainly designed for plastic pellet transportation, with the most optimized performance for this scenario.
Application Scenarios (European Market)
Suitable for 30FT standard containers in European logistics scenarios, including: 1. Intermodal transportation (sea + land) of plastic pellets between European countries (e.g., from Dutch ports to German plastic factories). 2. Domestic distribution of plastic pellets in European countries (e.g., from Paris to Lyon). 3. Import and export transportation of plastic pellets between Europe and other regions (compliant with EU packaging standards, no customs barriers). It is an essential flexible packaging product for European plastic pellet bulk container transportation, especially suitable for customers who pursue efficiency, cleanliness and cost-effectiveness, and need to meet EU safety and environmental protection requirements.
