DBL-W02 Dry Bulk Container Liner (for Malt)
A specialized bulk packaging solution designed for malt (barley malt, wheat malt) transportation in standard 20ft/40ft/40HQ containers.
COLOR
Customization Available
SIZE
Customization Available
Specification Sheet
Product Overview
Product Name: Dry Bulk Container Liner (Malt Special Grade)
Material Structure: 100% Food-Grade 110gsm HDPE Woven Fabric (Reinforced Core Layer) + LDPE Exterior & Interior Lamination (Anti-Leak, Food-Safe)
Core Function: A specialized bulk packaging solution designed for malt (barley malt, wheat malt) transportation in standard 20ft/40ft/40HQ containers. It replaces traditional bagging, enabling efficient, dust-free, and contamination-free bulk loading/unloading while preserving malt’s quality, flavor, and moisture stability.
Product Specifications
表格
| Parameter | Standard Specification | Customizable Range |
| Base Material | 110gsm HDPE Woven Fabric | 90gsm (Light Duty) / 110gsm (Standard) / 130gsm (Heavy Duty) |
| Lamination Layer | Food-Grade LDPE (Both Sides) | Thickness: 60-120μm per side |
| Total Weight | 320-380 g/m² (Depends on size) | Customizable |
| Load Capacity | 20-26 metric tons (per 40HQ container) | Aligned with container cubic capacity & malt density |
| Available Sizes | Custom fit for 20ft/40ft/40HQ containers | Custom length/width/height for non-standard containers |
| Moisture Proof | 99.9% Anti-Humidity, LDPE Seamless Seal | N/A |
| Dust Control | Full Enclosure, Zero Dust Emission | N/A |
| Food Safety | FDA, EFSA, ISO 22000 Compliant | N/A |
| Loading Method | Pneumatic Conveying / Mechanical Auger | N/A |
| Unloading Spout | Custom Integrated Discharge Spout (Dia: 200-300mm) | Spout size, position, & reinforcement adjustable |
Key Features (Malt-Specific)
- Superior Moisture & Contamination Resistance
The dual LDPE lamination creates an impermeable barrier, locking out external moisture, dust, and odors—critical for malt, which is prone to quality degradation from humidity and foreign substances. The 110gsm HDPE woven core provides exceptional tensile strength to prevent tearing during bulk handling.
- Bulk Efficiency & Cost Reduction

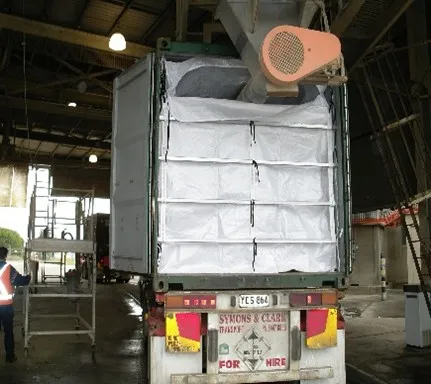

Eliminates the need for manual bagging/ bag unpacking. Loads/unloads via pneumatic systems in 30-60 minutes (vs. 8-12 hours for bagging), cutting labor costs by 60-70% and reducing container turnaround time. Ideal for high-volume malt shipments to breweries, distilleries, and food processing plants globally.
- Preserves Malt Quality & Flavor
Non-toxic, food-safe materials (FDA/EFSA approved) do not react with malt. The smooth inner lination prevents malt adhesion and residue buildup, ensuring the original flavor, color, and aroma of malt are intact throughout transportation.
- Structural Durability
110gsm HDPE woven fabric offers high tear resistance and load-bearing capacity, withstanding the pressure of 20+ tons of bulk malt. Reinforced edges and stress points (e.g., corner patches) prevent rupture during lifting, stacking, and container loading.
- Eco-Friendly & Recyclable
100% HDPE/LDPE recyclable materials align with global sustainability goals. Reduces plastic waste vs. single-use bags (one liner replaces ~1,000-1,500 x 25kg malt bags) and lowers carbon footprint from packaging disposal.
Application Scenario

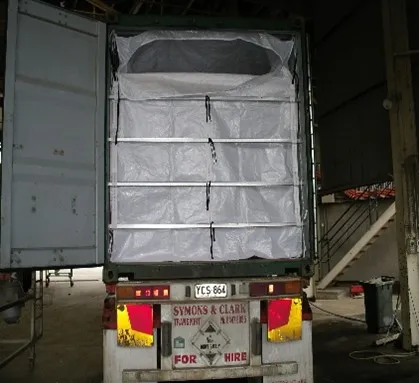

Core Use Case: Malt Transportation
- Suitable Malt Types: Base malt, crystal malt, roasted malt, wheat malt, barley malt, and other dry granular brewing/food ingredients.
- End Users: Breweries, distilleries, malt processing factories, food & beverage distributors, and international trading companies (export/import of malt).
- Transport Modes: Sea freight (containerized), land freight (trucks), intermodal logistics.
