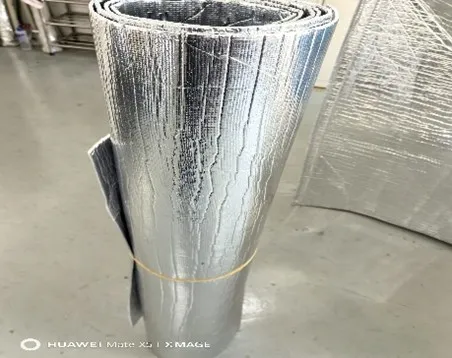

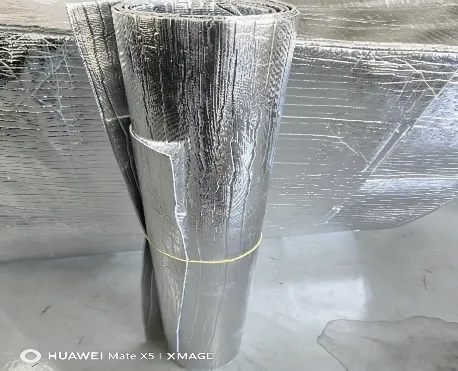

TL-02 Thermal Container Liner EPE foam

Product Specifications

The Thermal Container Liner is a high-performance insulated packaging solution specifically designed for temperature-sensitive cargo transportation. It adopts a 4-layer composite structure, combining the advantages of each material to achieve excellent thermal insulation, moisture resistance, and structural stability, ensuring the safety of goods during long-distance shipping.

1. Material Structure (From Outer toInner)

• OuterLayer: PET Aluminum Foil – Thickness: 12-15μm. It features high reflectivity
  (95%-97% of radiant heat), excellent barrier performance against moisture and oxygen, and effective resistance to infrared radiation, which can block external heat from penetrating into the container efficiently.
• SecondLayer: Woven PE (Polyethylene) – Gram weight: 120-150g/㎡. It is characterized by high tensile strength, wear resistance, and tear resistance, providing strong structural support for the liner and enhancing its durability during loading, unloading, and tra
• InsulationCore Layer: 3mm EPE Foam (Expandable Polyethylene Foam) – Density:
  25kg/m³. As the core insulation layer, it has low thermal conductivity, good elasticity, and excellent shock absorption  It effectively reduces heat transfer through conduction and convection, maintaining a stable internal temperature environment for the cargo.
• InnerLayer: PET Aluminum Foil – Thickness: 12-15μm. Consistent with the outer layer, it further enhances the thermal insulation and barrier effect, prevents internal temperature loss, and isolates the cargo from moisture, dust, and contamination, ensuring the integrity of the

2. Key TechnicalParameters

• OverallThickness: 024-3.030mm (including two layers of PET aluminum foil and woven PE layer)
• OperatingTemperature Range: -50℃ to 80℃, suitable for both low-temperature and high- temperature cargo transportation
• ThermalConductivity: ≤0.038 W/(m·K), ensuring excellent thermal insulation performance to reduce temperature fluctuations.
• MoistureVapor Transmission Rate: ≤0.033 g/(m²·h·kPa), effectively preventing condensation and moisture damage to the
• Size:Customizable to fit standard shipping containers (20GP, 40GP, 40HQ) and other special- sized containers.
• Installation:Easy to install with a hanging design, suitable for forklift loading, hand loading, and slip sheet loading, no professional tools
• Durability:Reusable for 3-5 times under normal use conditions, cost-effective and environmentally friendly; also available in disposable options as
  3. ProductFeatures
• SuperiorThermal Insulation: The 4-layer composite structure, especially the 3mm EPE foam core and double-layer PET aluminum foil, effectively blocks heat transfer through radiation, conduction, and convection, maintaining a stable internal temperature for the cargo during long-distance
• StrongBarrier Performance: Double-layer PET aluminum foil provides excellent resistance to moisture, oxygen, dust, and contaminants, preventing cargo from mold, corrosion, or contamination, and avoiding “container rain” and cargo sweat
• HighDurability: Woven PE layer enhances the liner’s tensile strength and wear resistance, making it resistant to tearing and damage during loading, unloading, and transportation, suitable for harsh shipping
• FlexibleCustomization: Available in various sizes and specifications to fit different types of shipping containers; custom printing, logo, and color are also acceptable to meet customer brand
• Cost-Effective:A more economical alternative to refrigerated (reefer) containers, requiring no electricity or additional cooling equipment, reducing shipping costs significantly while ensuring cargo
• Eco-Friendly:Made of non-toxic, odorless, and recyclable materials, complying with international environmental standards, and reusable to reduce packaging

Product Applications

This Thermal Container Liner is widely used in international and domestic shipping of temperature-sensitive cargo, providing reliable thermal protection and ensuring the quality and safety of goods during transit. Its main applications include the following industries and scenarios:

1. Food and BeverageIndustry

Ideal for transporting perishable food items that require strict temperature control, such as fresh fruits, vegetables, dairy products, meat, seafood, frozen food, chocolates, and beverages. It effectively prevents bacterial growth, spoilage, color change, and texture deterioration caused by temperature fluctuations, ensuring the goods reach their destination fresh and safe for consumption.

2. Pharmaceutical and MedicalIndustry

Suitable for shipping temperature-sensitive pharmaceutical products, including vaccines, insulin, antibiotics, and other drugs. These products have strict requirements on storage and transportation temperatures, and the liner’s stable thermal insulation performance ensures their efficacy and quality are not affected by external temperature changes, complying with international pharmaceutical shipping standards.

3. ChemicalIndustry

Used for transporting temperature-sensitive chemicals, industrial reagents, paints, and other hazardous materials that may become unstable or dangerous if exposed to extreme temperatures. The liner’s thermal insulation and barrier performance prevent chemical reactions caused by temperature fluctuations, ensuring safe transportation.

4. Electronics and Precision InstrumentsIndustry

Protects electronic products, precision instruments, and components (such as mobile phones, computers, sensors, and medical equipment) from damage caused by extreme temperatures, moisture, and dust during shipping. The EPE foam layer also provides shock absorption, reducing damage from vibration and collision during transit.

5. OtherScenarios

It can also be used for transporting high-value goods, cosmetics, wine, and other items that are sensitive to temperature and moisture. Additionally, it is suitable for long-distance ocean, land, and air transportation, especially in tropical or cold regions where temperature fluctuations are significant, providing all-round thermal protection for the cargo.
